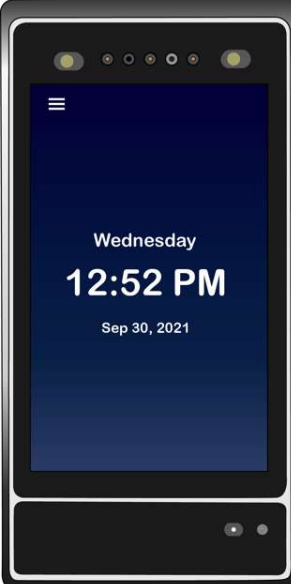

Setup and instructions for the F1000 facial recognition time clock device.

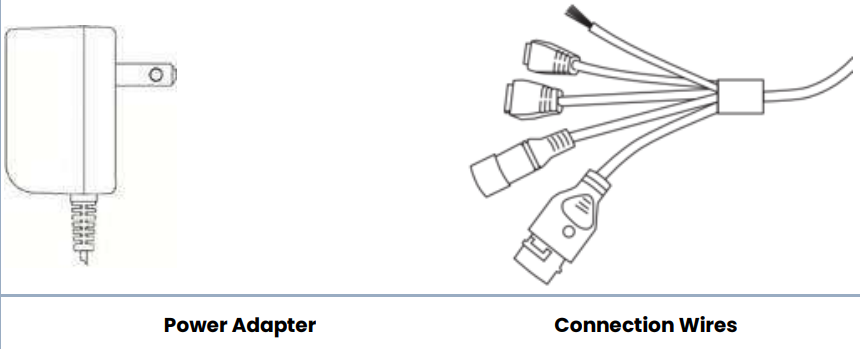

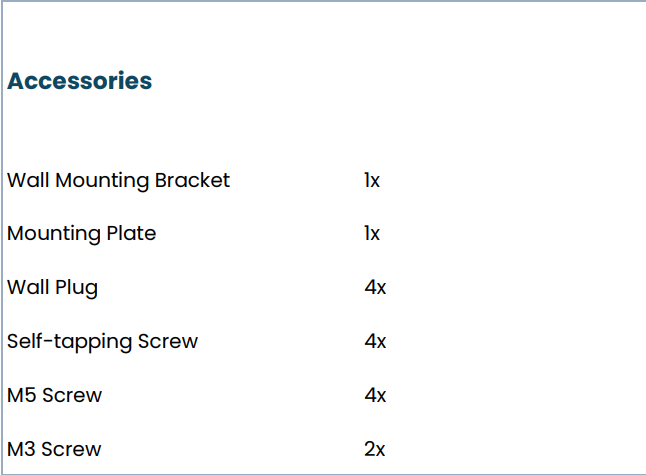

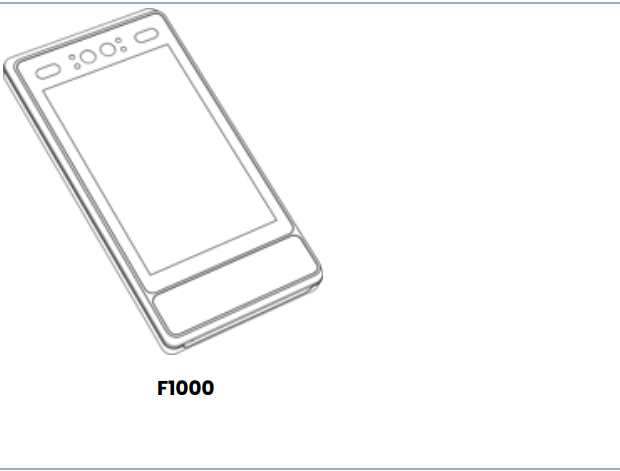

What's in the Box

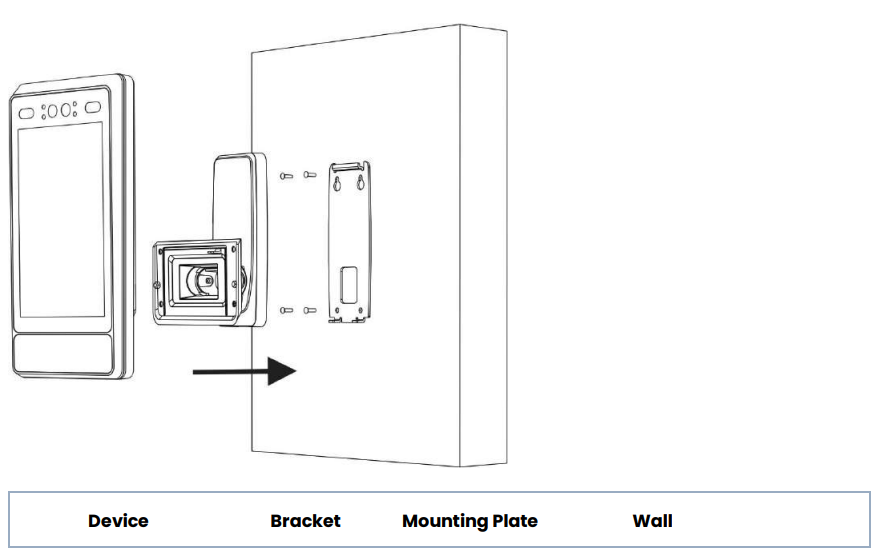

Installation

1. Drill holes on the wall or other surface according to the mounting plate.
2. Use four supplied self-tapping screws to secure the mounting plate on the wall.
3. Route the cables through the cable hole of the mounting plate and bracket, and connect to the wiring terminals.
4. Plug the wiring terminals into the device and use four supplied M5 screws to secure the bracket on the device.
5. Align the device with the mounting plate and buckle them together, and use two supplied M3 screws to secure the device on the mounting plate.
6. Adjust the tilt angle of the device according to your actual needs.
7. Plug the green wiring terminals into the device.

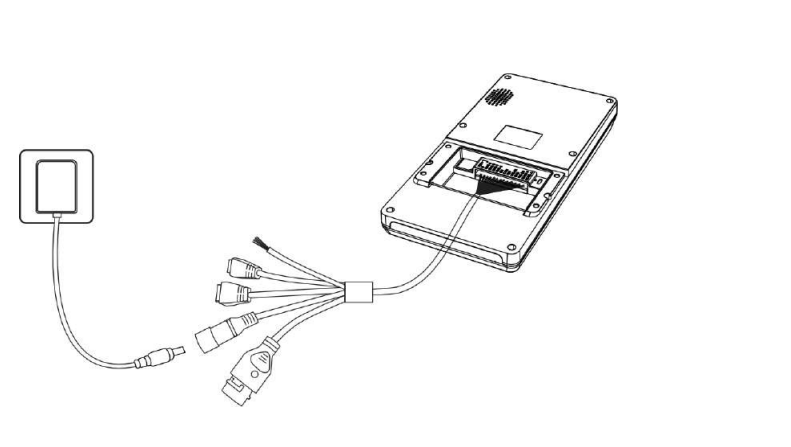

8. Connect the power adapter and network cable (if applicable)
